Ozone Output Chart

ULTRA-VIOLET (UV) OZONATORS
	Product Code :   UVA1000  Description :  UVONAIR 1000 ft³ Room Ozonator with 6" UV-Bulb Ozone Production (mg/hr) :  7.2 Air Flow Rate (cfm) :  1.1 Voltage / Amps / Watts :  120 V Fuses :  n/a Uvonair 1000 Bulb :  6 Watts UV Bulb Life Output : Rated for 9,000 hours of use under optimal conditions
	Product Code :   UVA3000  Description :  UVONAIR 3000 ft³ Room Ozonator with 11" UV-Bulb Ozone Production (mg/hr) :  29 Air Flow Rate (cfm) :  1.0 Voltage / Amps / Watts :  120 V Fuses :  n/a Uvonair 3000 Bulb :  14 Watts UV Bulb Life Output : Rated for 9,000 hours of use under optimal conditions
	Product Code :   UVA5000  Description :  UVONAIR 5000 ft³ Room Ozonator with 14" UV-Bulb Ozone Production (mg/hr) :  47 Air Flow Rate (cfm) :  1.1 Voltage / Amps / Watts :  120 V Fuses :  n/a Uvonair 5000 Bulb :  17 Watts UV Bulb Life Output : Rated for 9,000 hours of use under optimal conditions
	Product Code :   UV-80H  Description :  8" In-Line DUCT Ozonator with 2 High Output 6" UV-Bulbs Ozone Production (mg/hr) :  270 Air Flow Rate (cfm) :  249 Voltage / Amps / Watts :  120 V Fuses :  2.0 amp UV-80H (High Output) Bulb :  18.3 Watts UV Bulb Life Output : Rated for 9,000 hours of use under optimal conditions

MAINTENANCE-FREE CORONA DISCHARGE (CD) OZONATORS

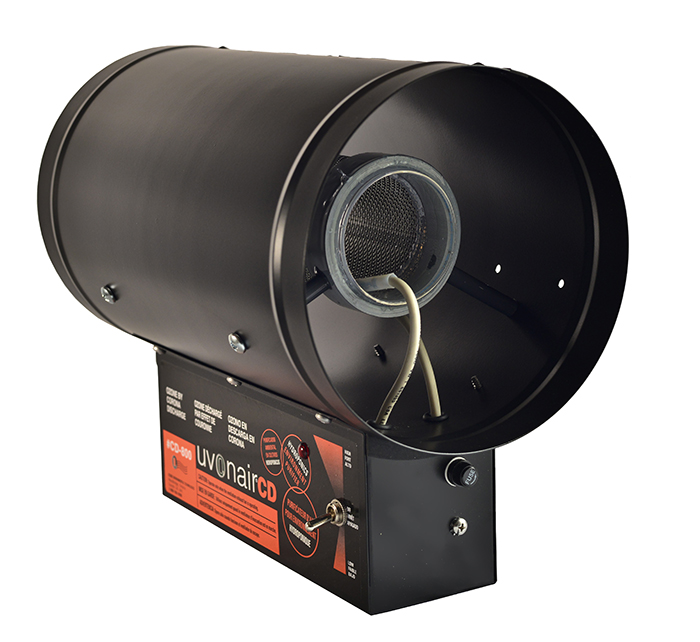

	Product Code :   CD800  Description :  8" In-Line-DUCT Corona Discharge Ozonator Unit with 1 Cell Ozone Production (mg/hr) :  1100 Air Flow Rate (cfm) :  249 Voltage / Amps / Watts :  120 V / 0.2 A / 24 Watts  Fuses :  0.5 amp
	Product Code :   CD1000-2  Description :  10" In-Line-DUCT Corona Discharge Ozonator Unit with 2 Cells Ozone Production (mg/hr) :  3000 Air Flow Rate (cfm) :  650 Voltage / Amps / Watts :  120 V / 0.5 A / 60 Watts Fuses :  1.0 amp
	Product Code :   CD1200  Description :  12" In-Line-DUCT Corona Discharge Ozonator Unit with 3 Cells Ozone Production (mg/hr) :  5800 Air Flow Rate (cfm) :  800 Voltage / Amps / Watts :  120 V / 0.75 A / 90 Watts Fuses :  1.5 amp

TEST DETAILS

•  Units have been tested 120 Volt / 60 Hz. All Data given above is based on this Voltage. Fuses used are slo-blo Fuses - exception: UV80H!
•  Above products have been tested by B.C. RESEARCH INC., Vancouver, B.C./Canada.
•  Air velocity was measured using an Alnor Model 6000P velometer.
•  Sampling air flow rates were measured using a rotameter calibrated against a Buck Model M5 primary gas flow standard instrument.
•  Temperature and humidity were measured using a Bendix Model 566 psychrometer.
•  During testing the temperature ranged between 24 and 30 Degrees Celcius and the relative humidity ranged between 36 and 47%.
•  Due to a new & improved design implemented June 2013, UV1000, UV3000 & UV5000 have an increased ozone production of 15%.
